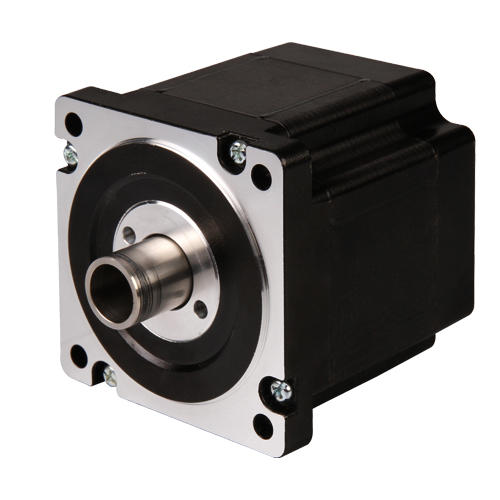

NEMA34 Hollow Shaft Stepper Motor

Hollow Shaft Stepper Motor
$78.00
Qty:
(This product has a limit set to 50000 item(s) per order)
Add to Cart Buy Now
Print


Motor Type Bipolar stepper
Step Angle 1.8°
Voltage (V) 3 / 3.6
Current (A) 6
Resistance (Ohms) 0.5 / 0.6
Inductance (mH) 4 / 8
Lead Wires 4
Holding Torque (N.m) 4 / 8
Motor Length (mm) 76 / 114
Ambient Temperature -20℃ ~ 50℃
Temperature Rise 80K Max.
Dielectric Strength 1mA Max. @ 500V, 1KHz, 1Sec.
Insulation Resistance 100MΩ Min. @500Vdc

NEMA34 Hollow Shaft Stepper Motor

Electrical Specifications:

Model No.

Voltage/

Phase

(V)

Current/

Phase

(A)

Resistance/

Phase

(Ω)

Inductance/

Phase

(mH)

Number of

Lead Wires

Rotor Inertia

(g.cm2)

Holding Torque

(N.m)

Motor Length L

(mm)

34HS76

3

6

0.5

4

4

1300

4

76

34HS114

3.6

6

0.6

8

4

2500

8

114

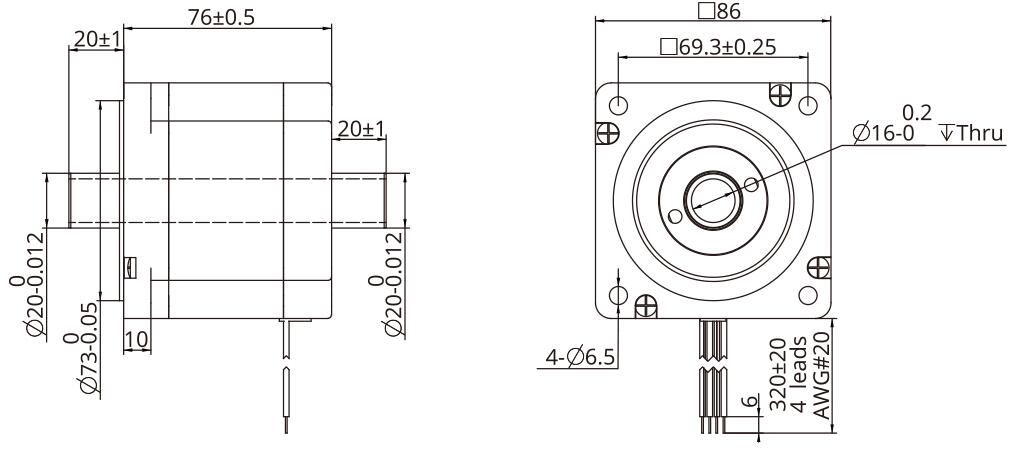

 Mechanical Dimensions and Wiring Diagram:

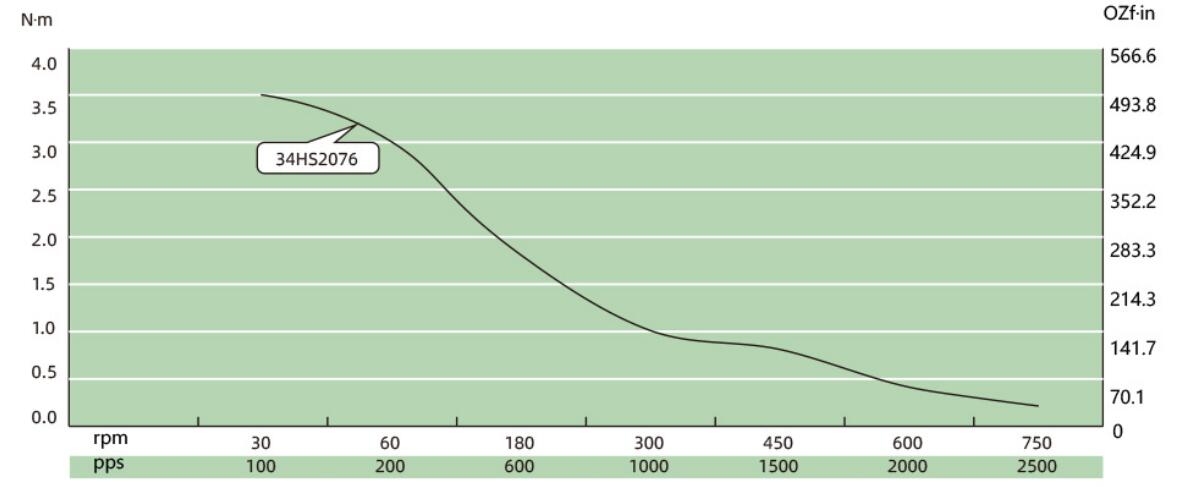

Torque Performance Curve:

34HS7634HS114

Test Condition: Chopper drive, no ramping, half micro-stepping, drive voltage 40V
Lead Wire Mode Options:


More Information on detail, please feel free to contact me
