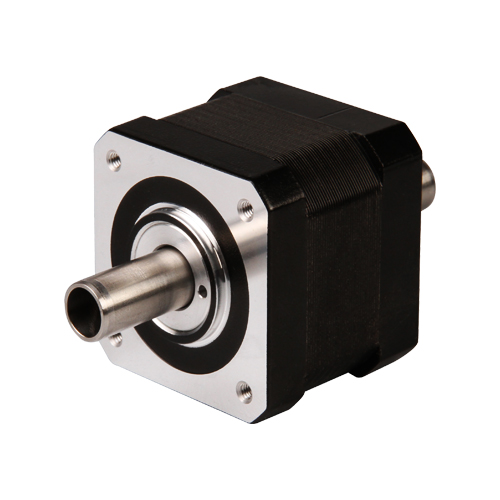

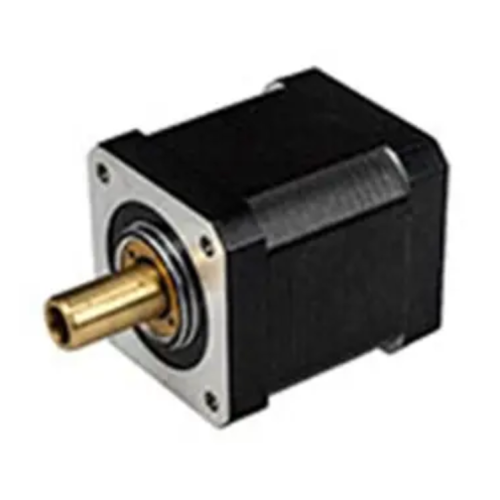

NEMA17 Hollow Shaft Stepper Motor

Hollow Shaft Stepper Motor
$37.00
Qty:
(This product has a limit set to 50000 item(s) per order)
Add to Cart Buy Now
Print



Step Accuracy:±5%Resistance Accuracy:±10%
Inductance Accuracy:±20%Temperature Rise:80°C MAX
Ambient Temperature Range: -20°C~ 50°CStorage Temperature Range: -30°C~ 60°C
Insulation Resistance:100M Ω MIN. 500V DCDielectric Strength:500V AC 1min
Radial Play:0.02mm MAX. (450g Load)End Play:0.08mm MAX. (450g Load)
Max. Radial Force:20NMax. Axial Force:2N

NEMA17 Hollow Shaft Stepper Motor

Electrical Specifications:

Motor Type Bipolar stepper
Step Angle 1.8°
Voltage (V) 2.6 / 3.3 / 2 / 2.5
Current (A) 1.5 / 1.5 / 2.5 / 2.5
Resistance (Ohms) 1.8 / 2.2 / 0.8 / 1
Inductance (mH) 2.6 / 4.6 / 1.8 / 2.8
Lead Wires 4
Holding Torque (N.m) 0.22 / 0.35 / 0.5 / 0.6
Motor Length (mm) 34 / 40 / 48 / 60
Ambient Temperature -20℃ ~ 50℃
Temperature Rise 80K Max.
Dielectric Strength 1mA Max. @ 500V, 1KHz, 1Sec.
Insulation Resistance 100MΩ Min. @500Vdc

Radial clearance

0.02mm Max (450g load)

Insulation resistance

100MΩ @500VDC

Axial clearance

0.08mm Max (450g load)

Dielectric strength

500VAC, 1mA, 1s@1KHZ

Max radial load

25N (20mm from flange surface)

Insulation class

Class B (80K)

Max axial load

10N

Ambient temperature

-20℃ ~ 50℃

Model No.

Voltage/

Phase

(V)

Current/

Phase

(A)

Resistance/

Phase

(Ω)

Inductance/

Phase

(mH)

Number of

Lead Wires

Rotor Inertia

(g.cm2)

Holding Torque

(N.m)

Motor Length L

(mm)

17HS34

2.6

1.5

1.8

2.6

4

35

0.22

34

17HS40

3.3

1.5

2.2

4.6

4

55

0.35

40

17HS48

2

2.5

0.8

1.8

4

70

0.5

48

17HS60

2.5

2.5

1

2.8

4

105

0.6

60

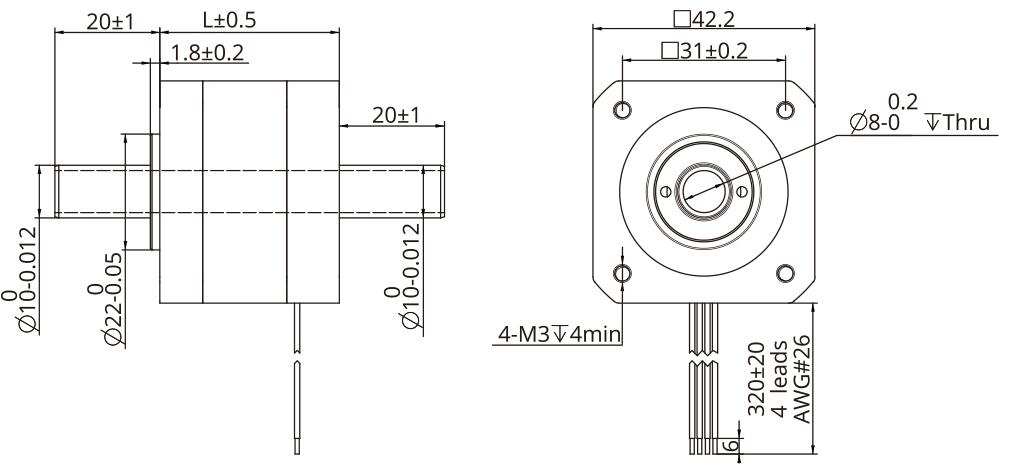

 Mechanical Dimensions and Wiring Diagram:

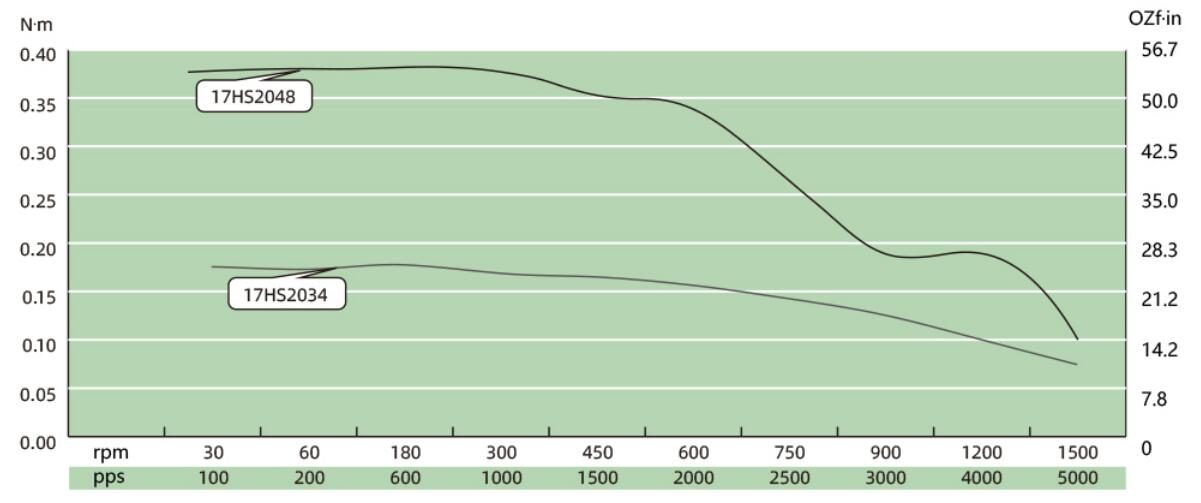

Torque Performance Curve:

17HS3417HS40
17HS4817HS60

Test Condition: Chopper drive, no ramping, half micro-stepping, drive voltage 40V

More Information on detail, please feel free to contact me
