4~20 mA Current-Adjustable Stepping Motor Driver
|
420MA Specifications | |||
| Minimum Value | Typical Value | Maximum Value | Unit | |
|---|---|---|---|---|
| Supply Voltage (DC) | 12 | 24 | 24 | VDC |
| Control Signal Input Current |
4 | 10 | 20 | mA |
Miniature size 42.2mm x 42.2mm x 14.5mm
DC input voltage 12~40VDC, recommended working voltage 24VDC.
Continuous output current 1.4A max, max peak current 2.0A.
Integrated design, mounted with NEMA17, NEMA23 stepper motor.
Low vibration, low noise, stable operation, low motor heating.
Working Speed Range can be customized as requirement.
Adjusting current: 4~20mA corresponding Speed: 0~300RPM (default setting for peristaltic pumps).

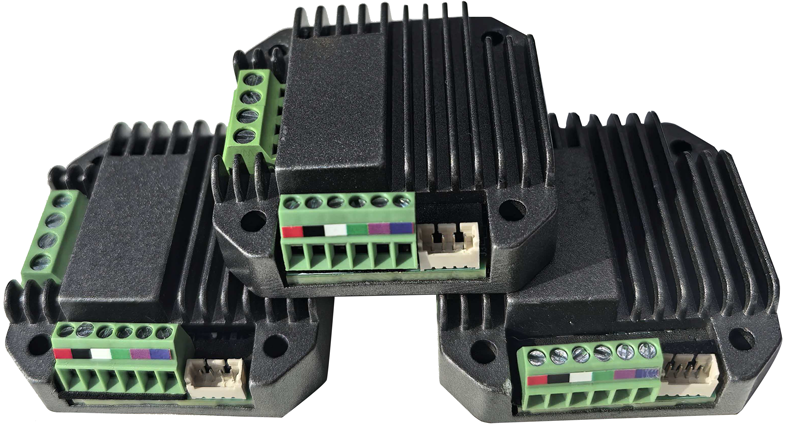

Product Gallery
Pin Configuration
| Pin No. | Name | Description |
|---|---|---|
| 1 | 24V | Supply voltage: 12-40VDC, Recommend DC24V |
| 2 | GND | Supply Voltage Ground: GND/0V |
| 3 | VCC | Reserved; H/L Speed Option or other Customized requirement |
| 4 | DIR | The rotation direction of the motor, CW/CCW |
| 5 | STP | The positive pole of the speed-regulating current |
| 6 | ENA | Enable the Stepper Motor |
Wiring Diagram
Demo Video
Customized Working Speed Range 0-300RPM for peristaltic pumps requirement
Adjusting current: 4~20mA corresponding Speed: 0~300RPM
Integrated Stepper Motor Assembly
When this NEMA17 Sized Driver is assembled with NEMA23 motor via a flange,
an Integrated Stepper Motor is formed
